After graduating college, I’ve moved into an apartment more permanently than 3-4 months at a time in the past. Because of this, I finally built myself a small homelab in a proper server rack, which I’ve been wanting to do for a long time. This is sort of a follow-up to “Building a Home Network on a Budget”.

Apartment Internet

For a little bit of background before we dive in, my apartment’s internet is a bit atypical. I don’t have service directly through my ISP. Instead, the internet is provided by my apartment complex through Spectrum Community Solutions. Only WiFi is available, and I have to go into a web portal and manually add the MAC address of every device I have to my account so that they can connect. Even after doing this, many of my devices would still just refuse to connect:

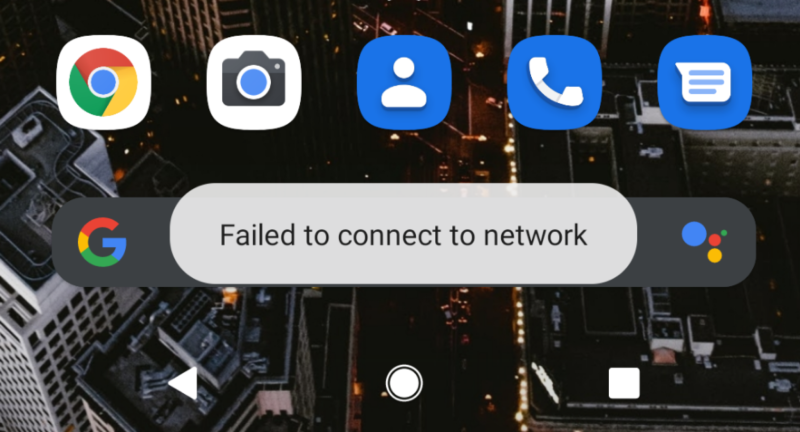

Failed to connect to network message on Android
My phone would almost always fail to connect

This was infuriating to say the least and I found the 5mbps guest WiFi more reliable. The good news is, my apartment has a WiFi router in it, and it’s plugged into the wall.

Diagram of apartment WiFi as provided
Small diagram of apartment WiFi as it was provided

With a bit of experimentation, I discovered that just unplugging the Spectrum WiFi access point, and plugging the wall jack directly into my laptop resulted in an internet connection! No Spectrum authentication bullshit, and it was full gigabit both ways (better than the 300mbps promised)! So as to not disturb the internet for my neighbors, I put a switch between the wall jack and the Spectrum WiFi access point so that I could connect my own devices via Ethernet. I did have to go out and buy a PoE switch, as the existing access point was PoE and I didn’t own a PoE switch.

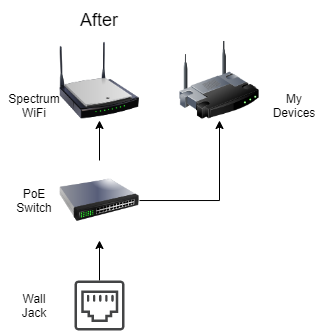

Diagram of apartment WiFi after slight modification
Small diagram of apartment WiFi after a slight modification

Network Infrastructure

Here are the components of my home network infrastructure.

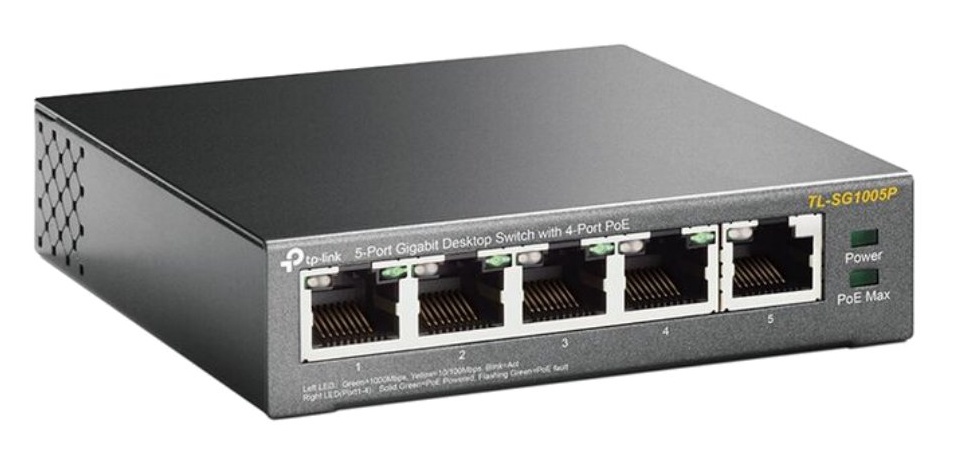

TP-Link 5 Port Gigabit, 4 Port PoE Switch

This was the little PoE switch I got to break out the ethernet from the wall. It was the least expensive thing I could find at my local Microcenter.

Qotom Q535G6 - $373.46

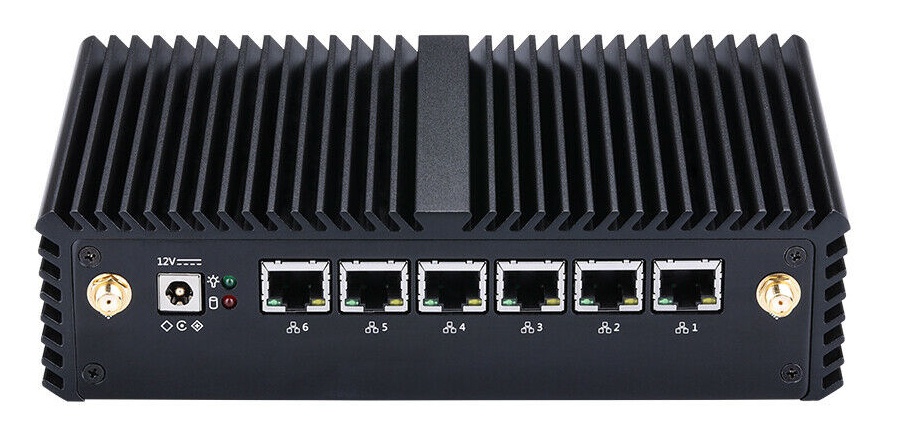

Qotom Q535G6

This is a fanless mini PC I got on eBay, which I have installed pfSense on and am using as my router. I bought one with an Intel i3-7130U, 4GB of RAM, and 32GB mSATA SSD. I also sprang for the $25 rackmount case upgrade. When I was looking at these earlier, the rackmount cases where near-impossible to get, and when I was actually ready to buy, only the 6-port version of the rackmount case was available. Thus, I bought the matching 6-port mini PC and rack case. Now, there’s 4-port versions back in stock, which would have saved me a lot of money on the PC, as I don’t need all 6 ports. Oh well.

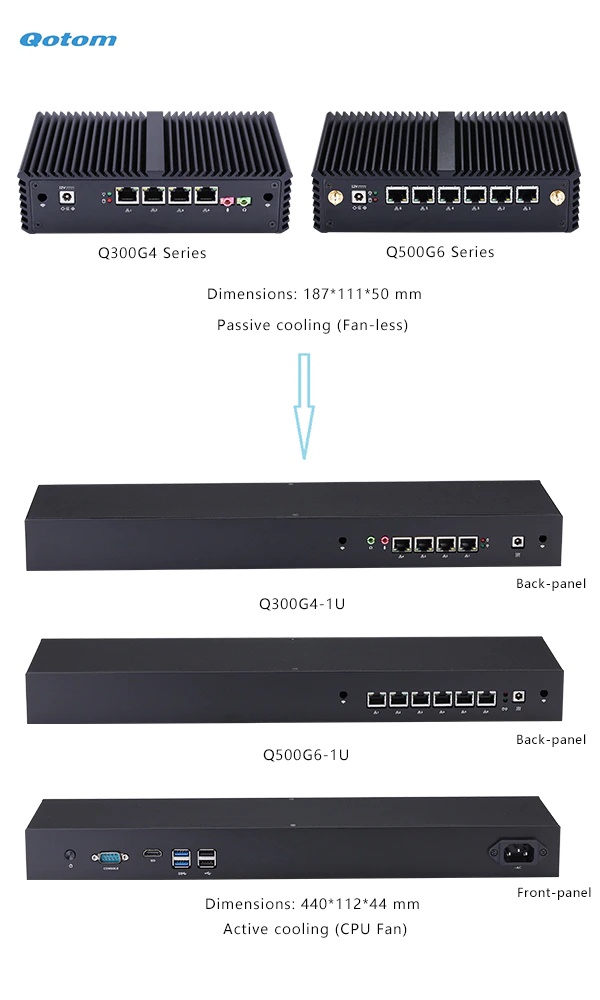

Qotom rackmount case diagram
Qotom rackmount case diagram

When the computer arrived (they were nice enough to assemble it for me in the rack case), I plugged it in and was very surprised to learn it in-fact had a fan. I didn’t look closely at the diagram above to see “Active cooling”. However, the fan was making a horrible grinding sound, but only when the computer was right-side up. I figured out the cause to this is that the fan is installed on the bottom-side of the motherboard. In a normal resting position, this means the little laptop cooling fan is upside down. The bearing in the fan has enough slop in it that the fan rubs against its shell and makes the grinding sound. Unfortunately, due to how the case is designed, you have to take apart basically the entire thing to get at the bottom.

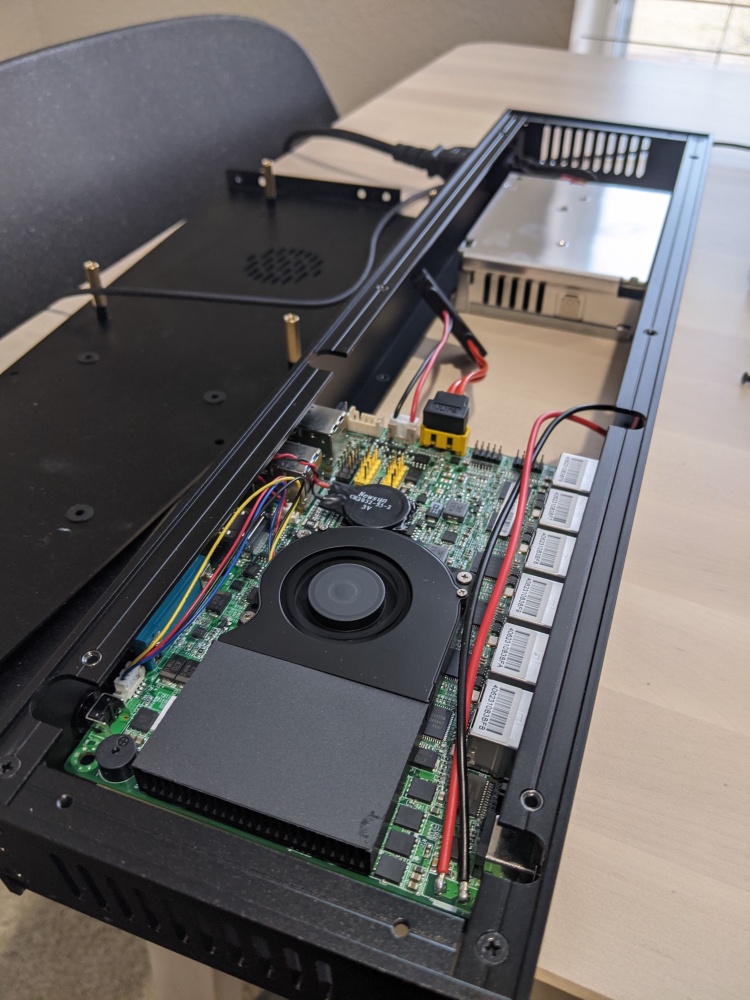

Qotom mini PC disassembled in the rackmount case
Because of those standoffs, you have to take the top shell off before you can remove the bottom shell. This is looking at the bottom side.

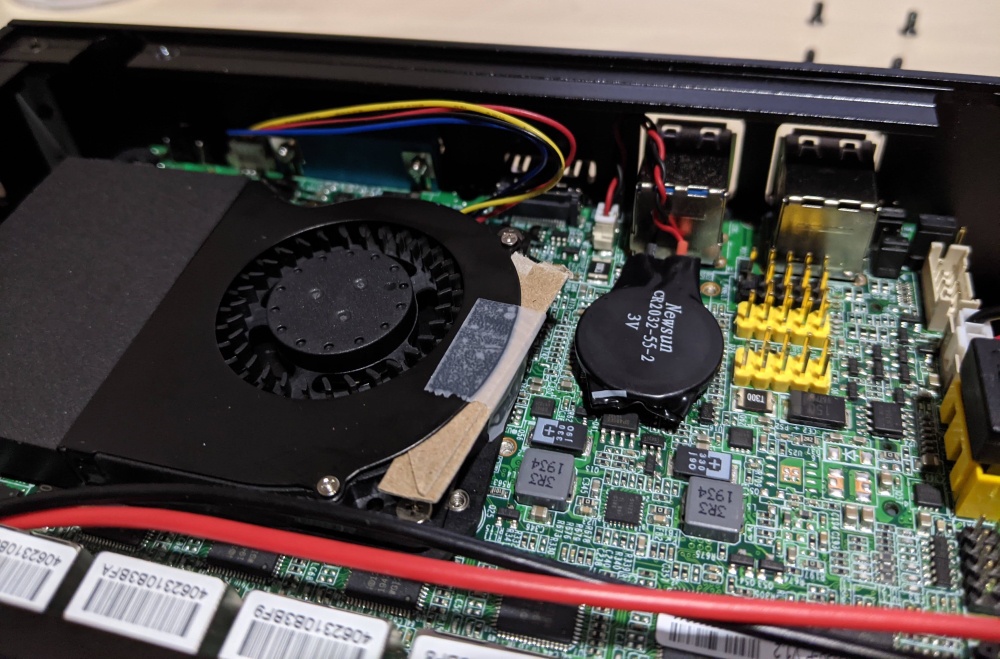

After figuring out how to take apart the whole thing, fixing it was relatively easy. I loosened a few screws in the fan’s shell and put a few pieces of cereal box cardboard in the edge to shim the shell a bit. I taped it all in place, flipped it back upside-down, and the fan stopped grinding.

Qotom mini PC fan fix
If it’s stupid but it works, it’s not stupid

After all this, I installed pfSense on the computer. I’ve set pfBlockerNG to replace Pi-hole to do DNS filtering. I really like that I can redirect all DNS queries to my pfSense box, as this stops devices with hard-coded DNS servers from bypassing the local DNS server.

I’ve configured port 1 as my WAN, port 2 as my LAN, port 3 as my WLAN connected directly to my wireless access point, and port 6 as my Work-from-home LAN. The only thing different about my Work-from-home LAN is that I’ve disabled the DNS filtering and redirection rules on that so as to not interfere with my corporate VPN or remote resources.

I love looking at pretty graphs, so I’ve really enjoyed looking at the data that the ntopng package on pfSense provides.

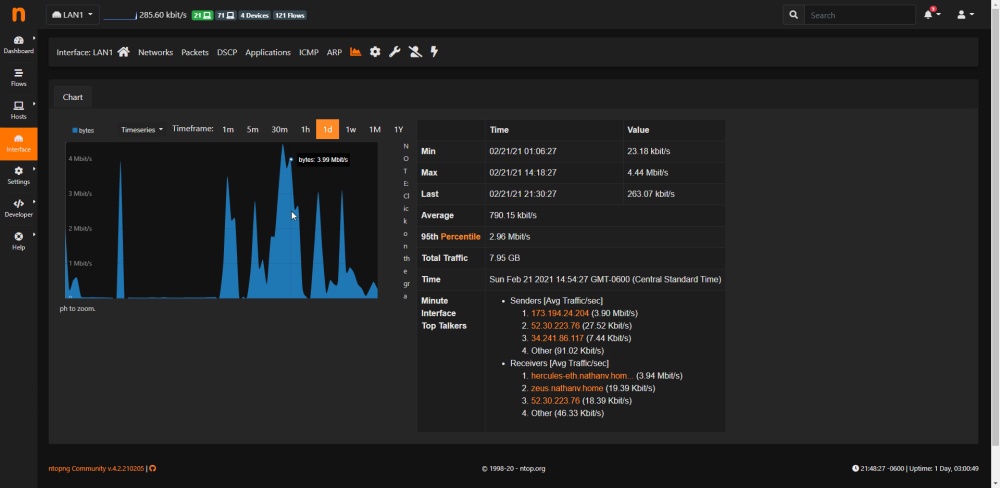

ntopng interface graph
This is a graph of the total traffic across the LAN interface for a full day

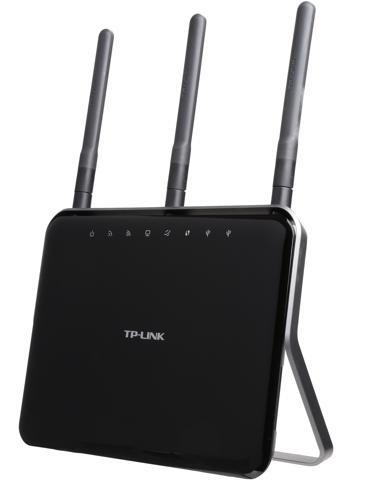

TP-Link Archer C1900

This is the same WiFi router from before. Instead now, I’m using it as an access point rather than a router. This was pretty easily done by disabling the DHCP server and plugging in the inbound connection to a LAN port rather than the WAN port. I also went in and turned off all the security features and UPnP as this is all handled by the firewall now.

There was one major issue though that I had to fix. As I put my wireless clients on a different subnet than my wired clients, I was unable to access the TP-Link web portal from a wired device. It turns out that by default, in a setup like this, the device doesn’t set a default gateway. I had to access the web portal from a device on the wireless subnet and manually add a route.

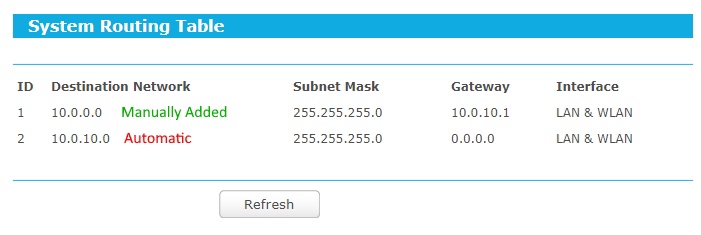

Route manually added to the wired subnet with a gateway defined
You can’t modify the default route that automatically sets the gateway to

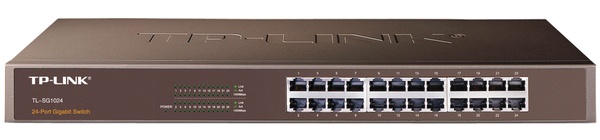

TP-Link 24 Port Gigabit Switch

I got this for free a few years ago. It’s older and not grey like the newer productions of this model. My switch is like the picture above and is a butt-ugly vomit brown/green color. I did spend $14.95 on a Noctua NF-A4x20 FLX fan to replace the original 40mm fan to make it quieter.

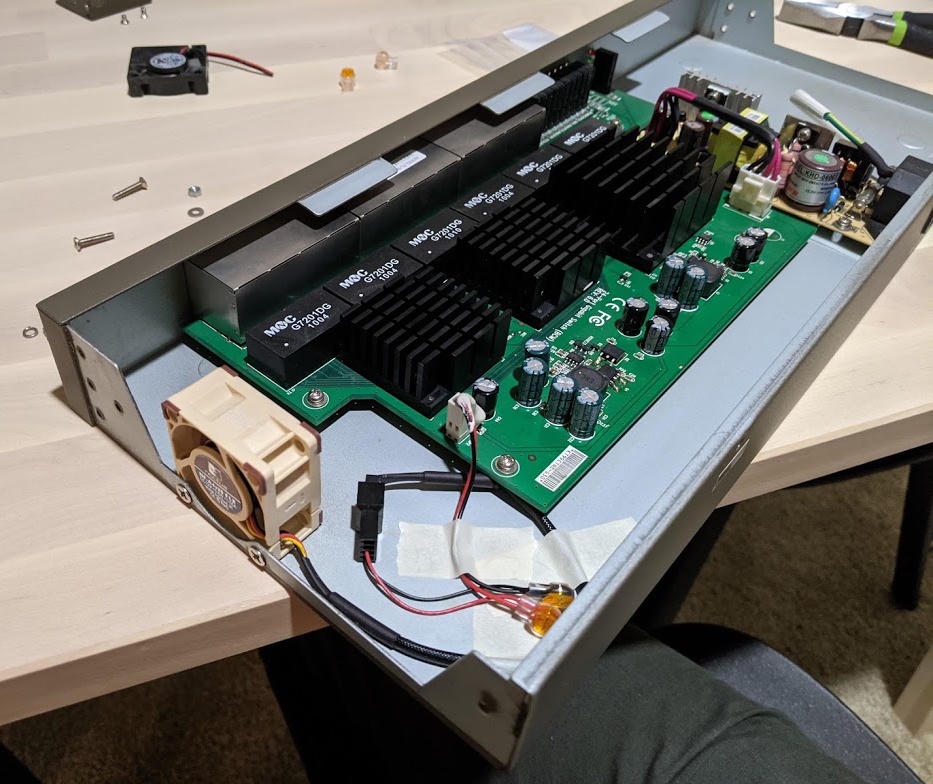

TL-SG1024 taken apart with a new fan installed
The result of my fan-swapping surgery. Unfortunately I wasn’t able to unplug the old fan, so had to cut the wires and use the provided 3M Scotchlok butt connectors

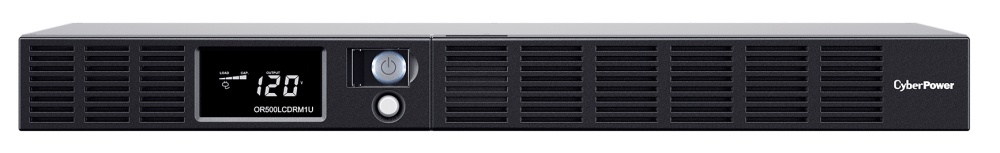

CyberPower OR500LCDRM1U - $164.95

CyberPower OR500LCDRM1U

To power everything, I purchased this 1U UPS for my networking equipment. My desktop computer is already on a different UPS. I specifically choose this one as it’s shallower than many other options. My rack is pretty shallow and some of the other 1U UPS’s available would only give an inch or two of clearance in the back, while this is closer to 6.

It only supports up to 300W, but that works fine for me. Under a normal load, I’m only using around 25% capacity (75W), and even with full CPU usage on my primary server, the load then is around 50% (150W). Under normal conditions, this gives me nearly 30 minutes of runtime off the battery.

The UPS also comes with some pretty nifty web-based software called PowerPanel that lets you see statuses, run tests, and setup alerts.

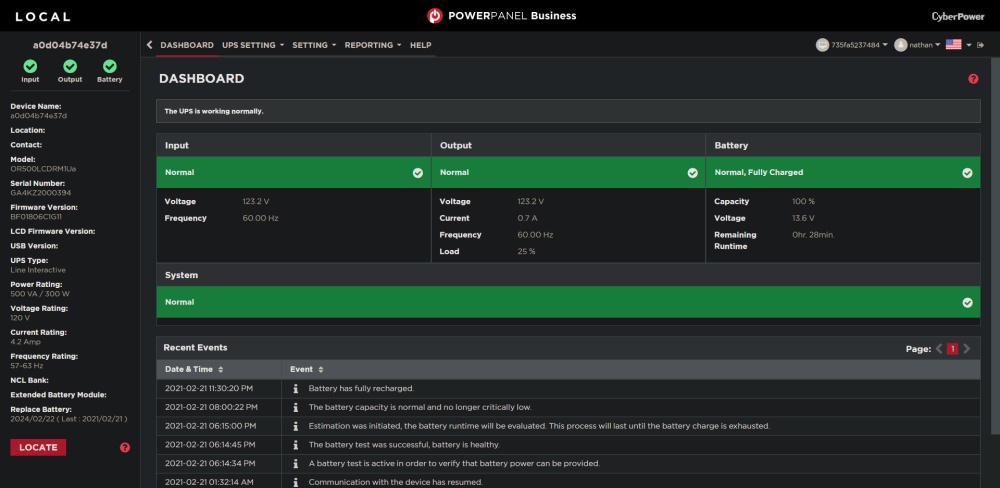

Screenshot of the PowerPanel software
PowerPanel interface

I created a Dockerfile for this software as I couldn’t find a pre-made one that was updated. See powerpanel-business-docker.

6U Rack - $50

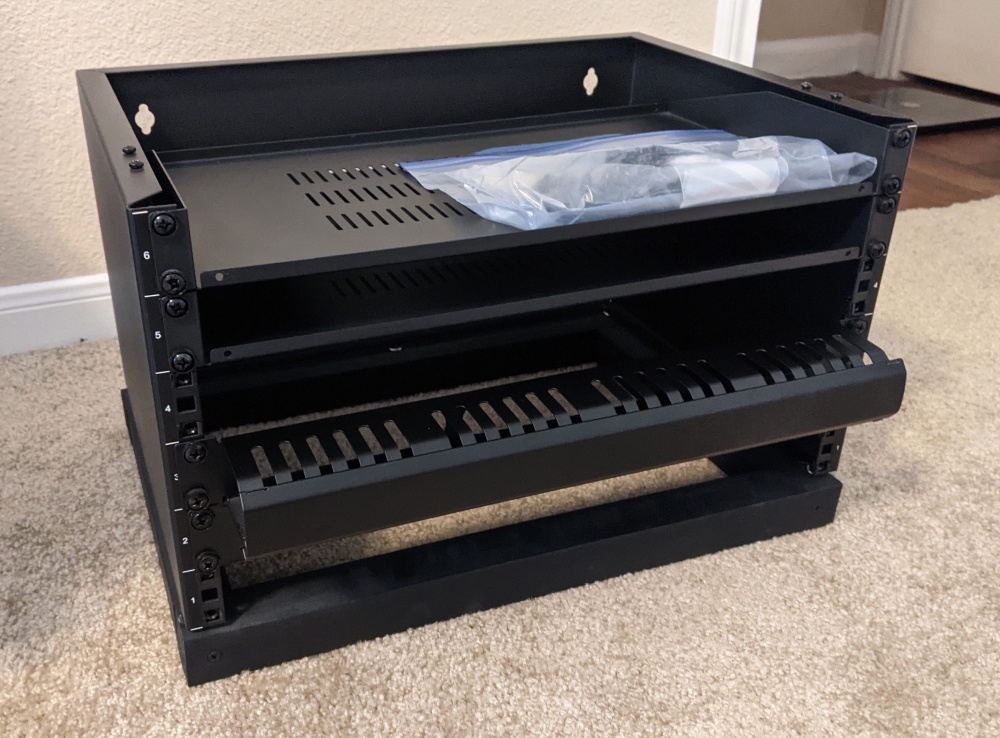

6U rack from Craigslist

Last but not least is the rack itself. I was able to snag this on Craigslist for $50 with everything included. I’m not sure what brand the rack itself is, but the shelves come from Navepoint. It included the two shelves, a blanking plate, a cable routing blank, all the original hardware, and the previous owner made a nice little wood base for it. It’s all in spotless condition too. Not a single scratch.

It’s a bit smaller than I wanted, as I was thinking of getting a 9U to be able to put my server into a 3/4U rackmount case, but the price was too good to pass up.

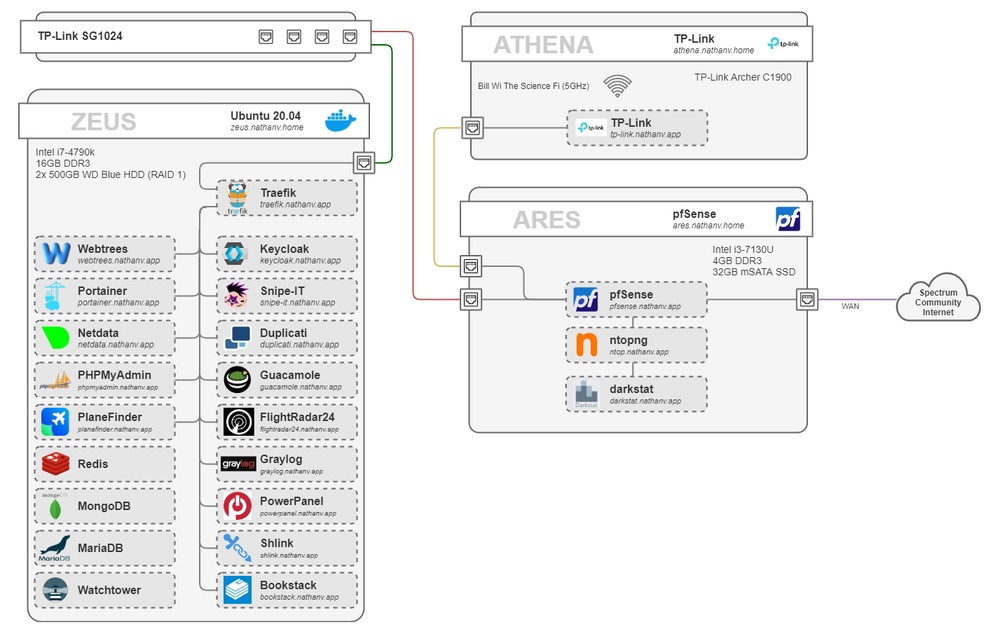

Full network diagram
Full network diagram. Switching coming from the wall jack has been left out for simplicity

The “zeus” server is the Sun Ultra 24 server from before, just with a fan upgrade to be quieter, and now two HDD’s in RAID 1 via software RAID in Ubuntu. Everything on it runs in a Docker container.

If you’re wondering how all the web apps are accessed, here’s a short explanation:

Internally: DNS is setup on my pfSense DNS resolver such that every subdomain of resolves to my main server running Traefik. This acts a reverse proxy to all web apps. Legitimate HTTPS certificates are obtained via Let’s Encrypt and DNS challenge.

Externally: Much like “Self-Hosting with Docker and Argo Tunnel”, I’m using Cloudflare’s Argo Tunnel on my main server, which is connected to Traefik. All the subdomains on external DNS are CNAME’d to this tunnel. Cloudflare is then serving their HTTPS certificate.

This is called a Split-Brain DNS setup.

For authentication, I replaced Cloudflare Access with Keycloak and Traefik Forward Auth. Most applications authenticate against Keycloak with either SAML or Open ID Connect (OIDC) (basically OAuth2). The applications that don’t inherently have authentication (Netdata, etc.), or are sensitive and could use a second layer (PHPMyAdmin, etc.) are protected with Traefik Forward Auth, which authenticates against Keycloak via OIDC.


Quick summary:

  • PoE Switch: Splitting apartment complex internet connection
  • pfSense: Router, DHCP, DNS
  • TP-Link Archer: WiFi AP
  • Non-PoE Switch: LAN
  • Sun Ultra 24: Primary server

In total, I’ve spent $688.34 on this project, before the small stuff like Velcro straps and color-coded cables. Call it $750. I now realize that’s a lot of money. I am extremely pleased how it’s turned out, though, and don’t foresee any changes for the near future. There is a large hole on the second shelf, and that’s intended to be room for a modem if/when I move out of this apartment complex and have my own internet connection. Maybe I’ll find a use for my Raspberry Pi and put it there since it’s been retired from running Pi-hole.

It also looks pretty cool in the dark.

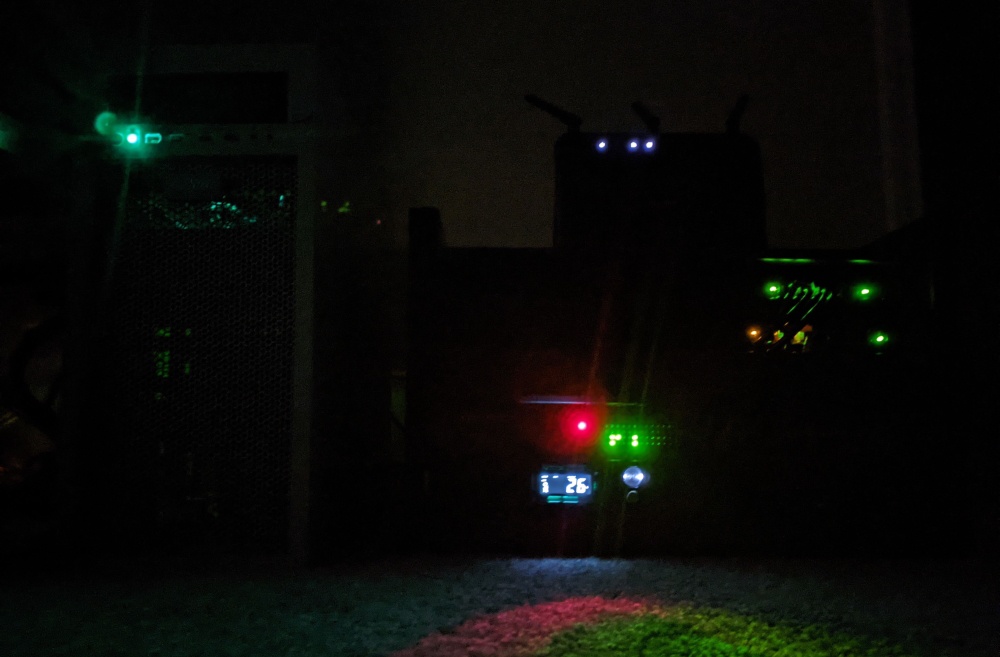

Server rack with status lights shining in the dark
